SKZXR-600*5300 CNC arbitrary angle double head cutting saw

Introduction

Equipment Features

Technical Parameters

Main Configurations

1 It is new designed to meet the development of modern aluminum curtain wall,aluminum template processing industry

and radiator industry.

2 It is mainly used for processing of extra wide aluminum profile,also can be used to process aluminum profile,also can

be used to process aluminum profile vertical end-face material-discharging

3 Adopt servo motor to drive reducer,implement saw blade rotation positioning at any angle between 45°and 90°.

4 Two cutting heads not only can work separately,move able head feeding material continuously,fixed cutting head

cutting circularly;but also can work simultaneously,can cut needed length and profile two ends angle at one time.

5 Hard alloy teeth cutting blade,high cutting speed,high produce efficiency,high process accuracy.

Power Supply : 380V/50Hz

The motor of the saw head :power 3 X 2 kw

Motor Rotary Speed:2800r/min

The saw wings servo motor:power 0.9 x 2 kw

The head horizontal moving servo motor:power 1.5 kw

The head angle motor:power 0.18 x 2 kw

The Air Pressure : 0.5MPa~0.8MPa

Cutting Length :max 5300mm

Cutting Width X Height ：max 500X180 mm 90°

Cutting Height Max：210 mm 90°

Cutting Angle : Saw Blade 45°~ 90°

Machine head 45°~ 90°

The feeding speed :Speed Governing Continuously 0~ 3m/min

Saw Blade Specification :φ600mm×4.4mm×φ30mm Z=120

Overall Dimension :750mm×2450mm×1700mm

Weight about :5000kg

Introduction

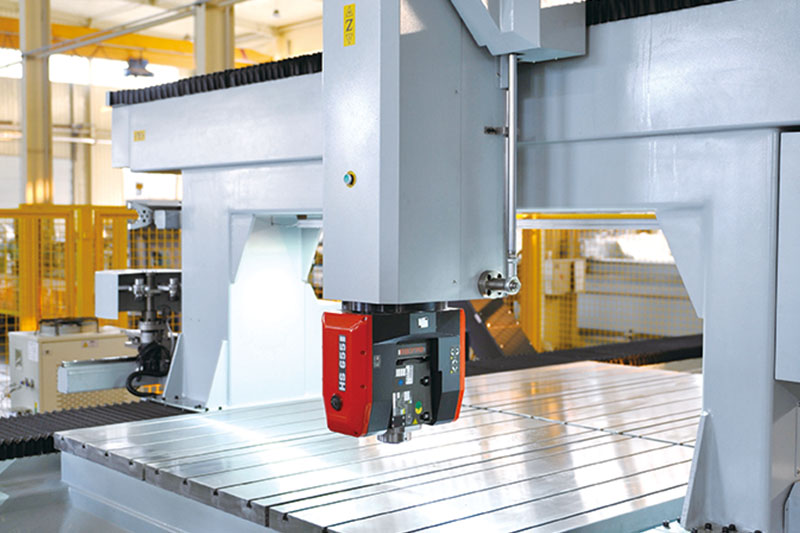

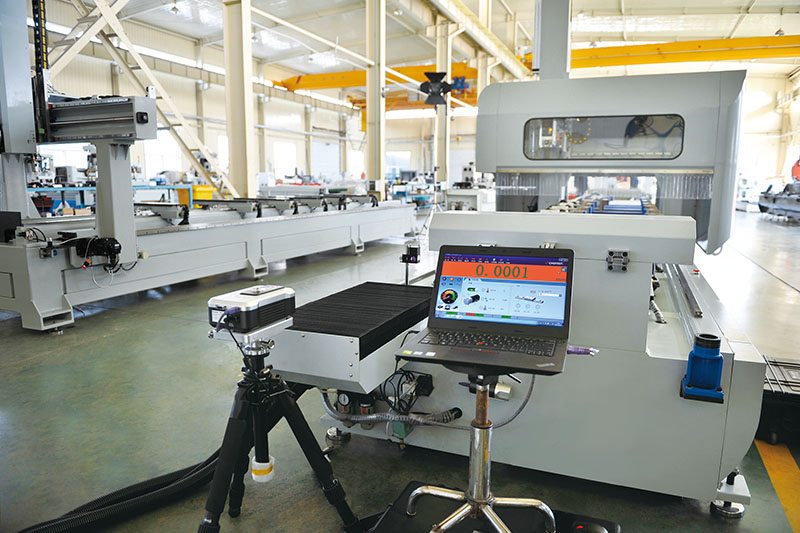

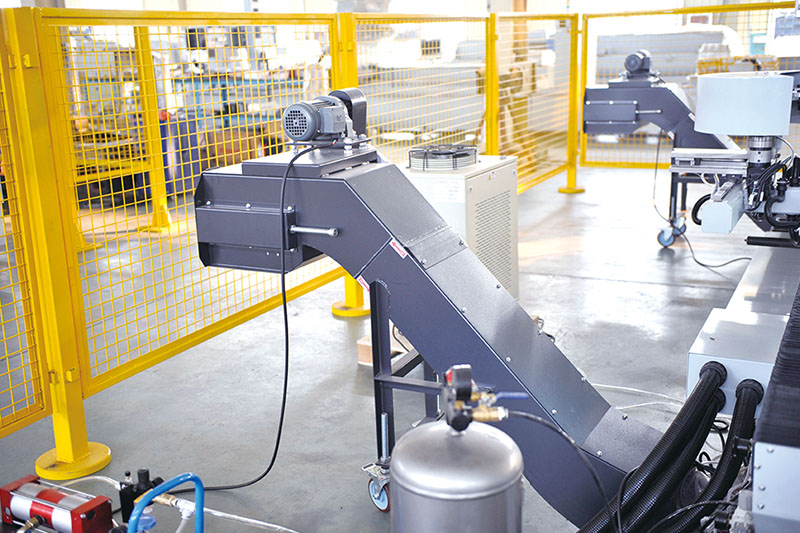

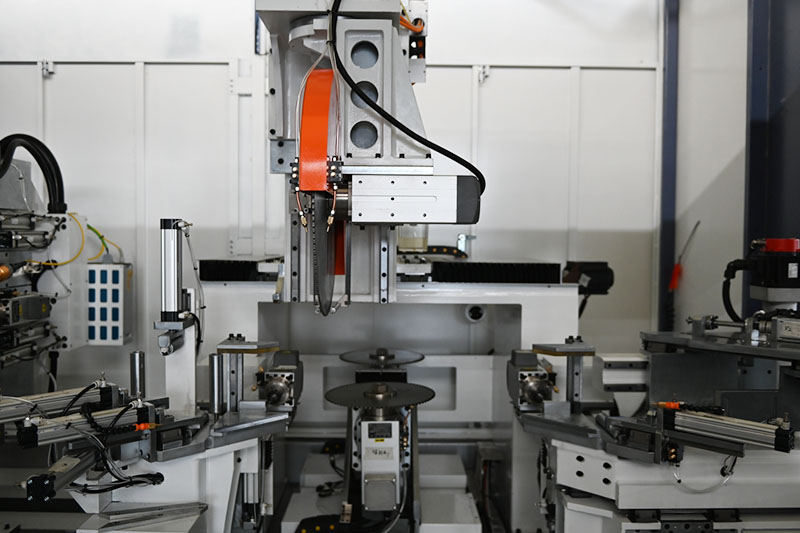

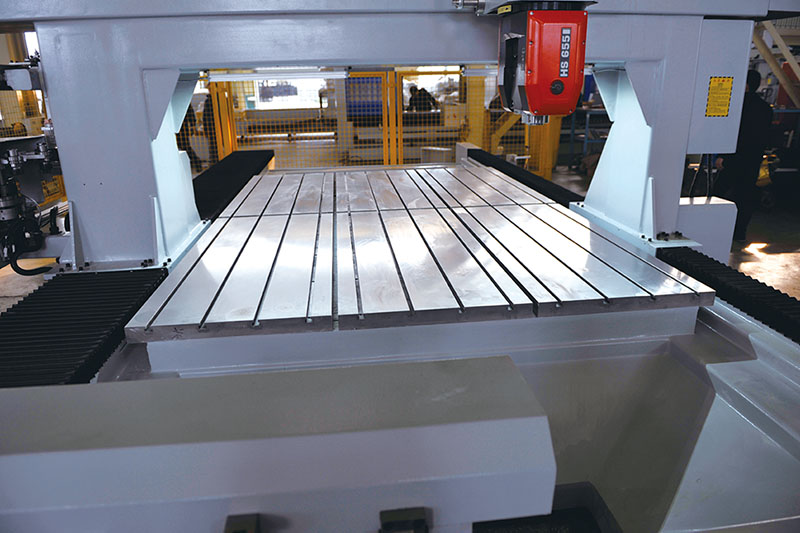

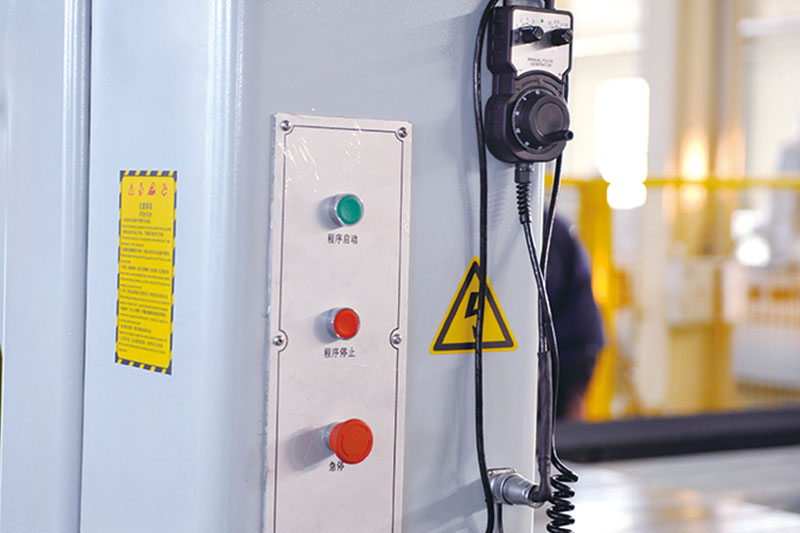

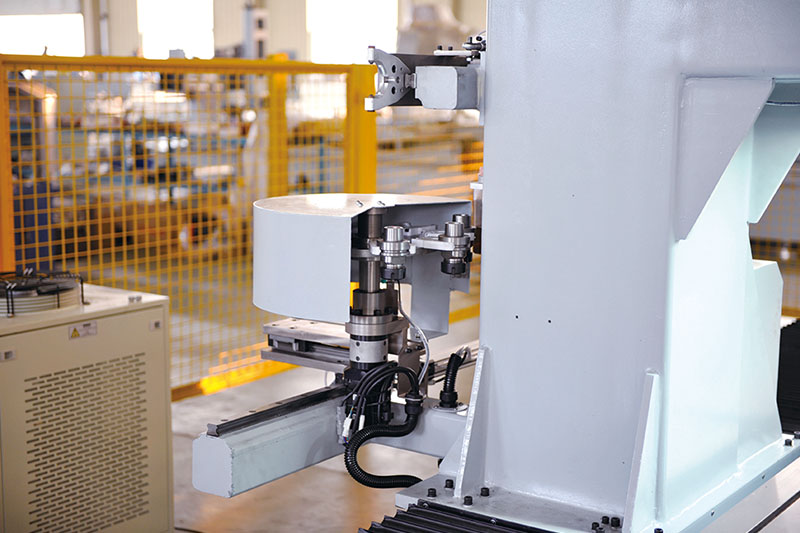

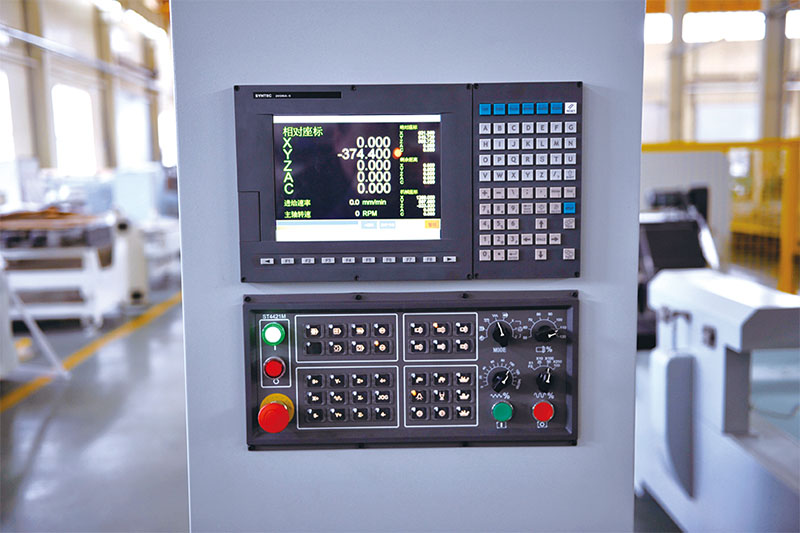

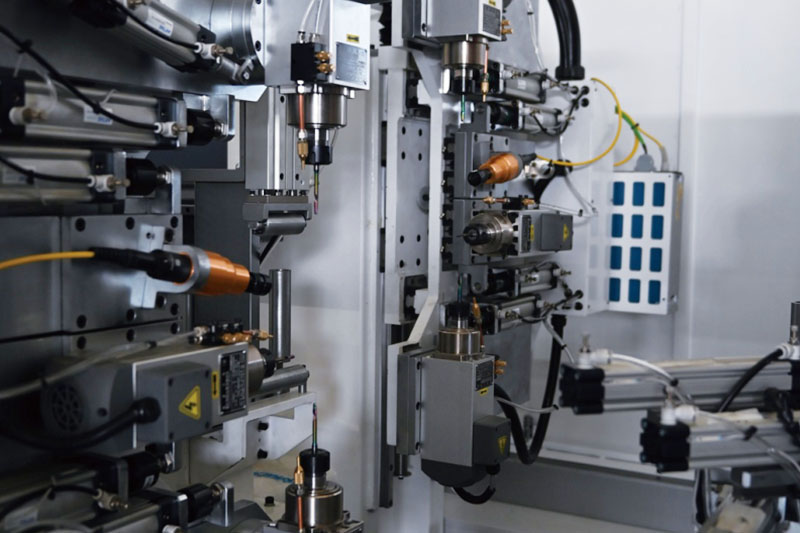

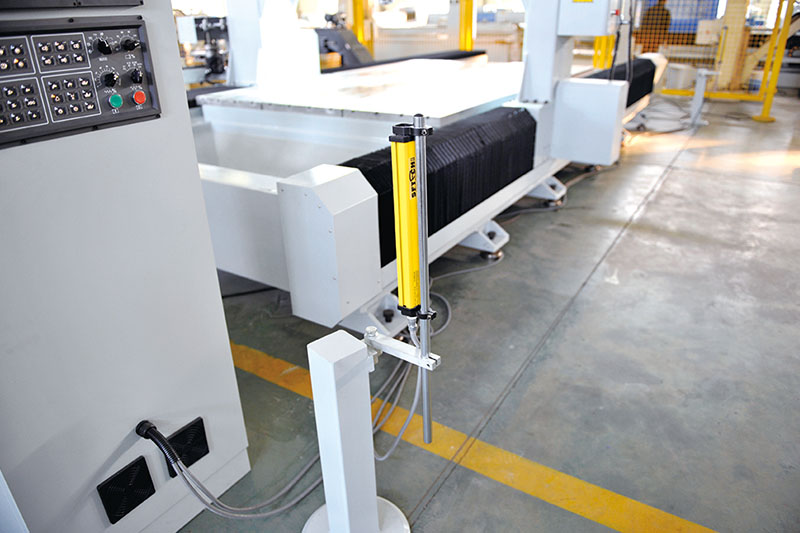

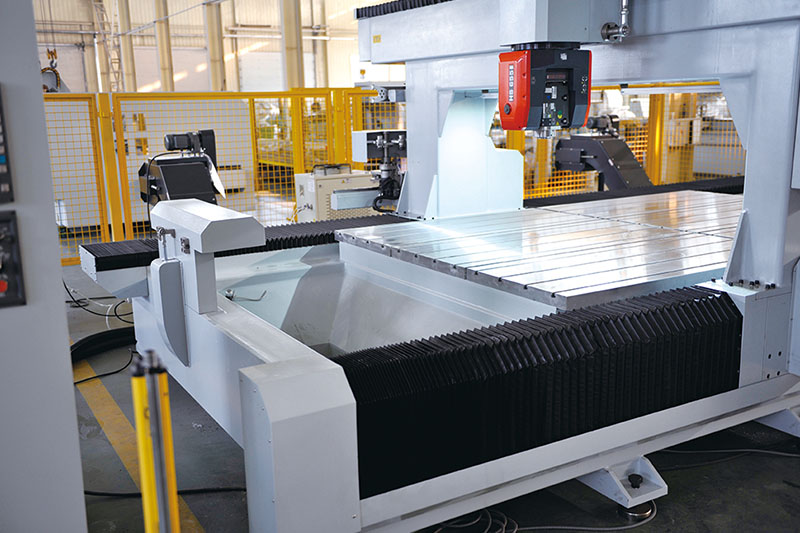

Product Details Display





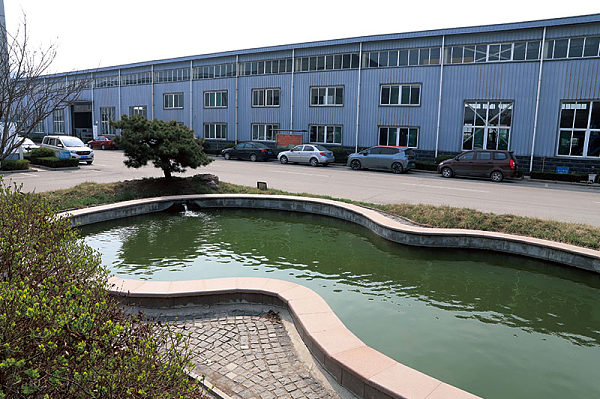

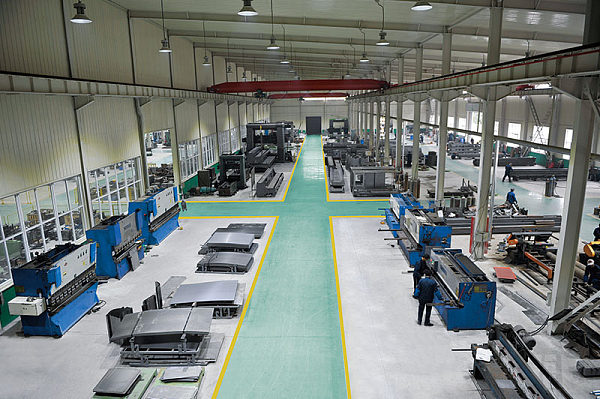

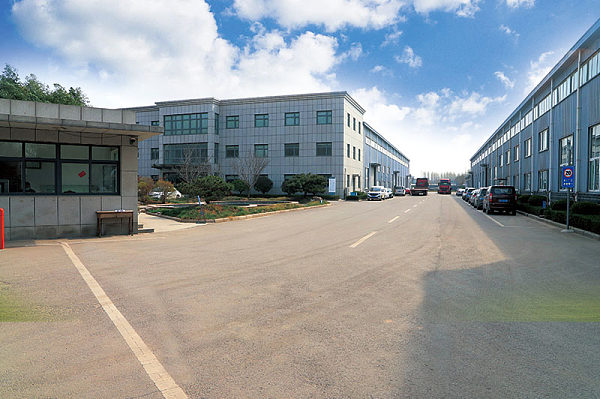

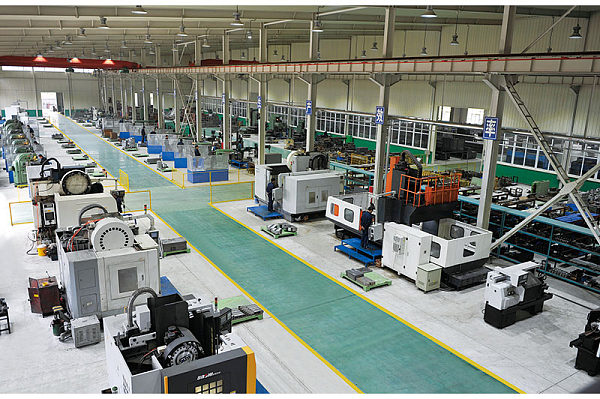

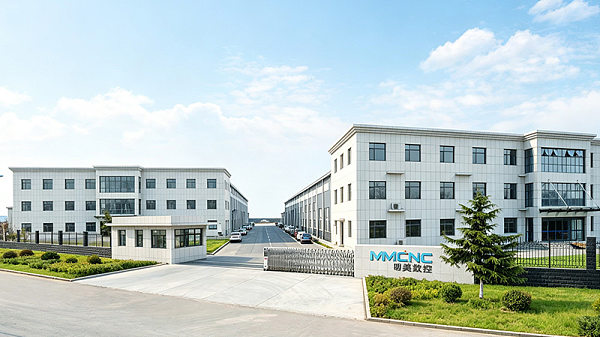

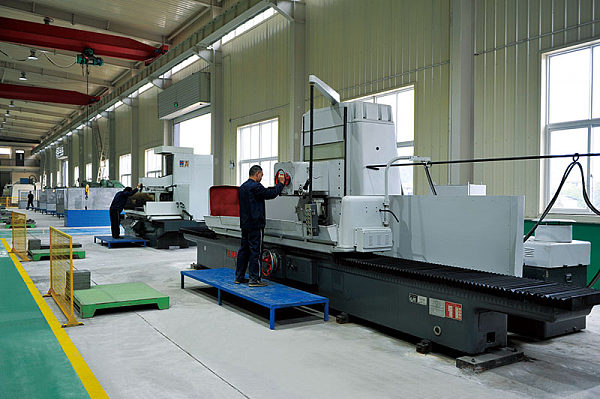

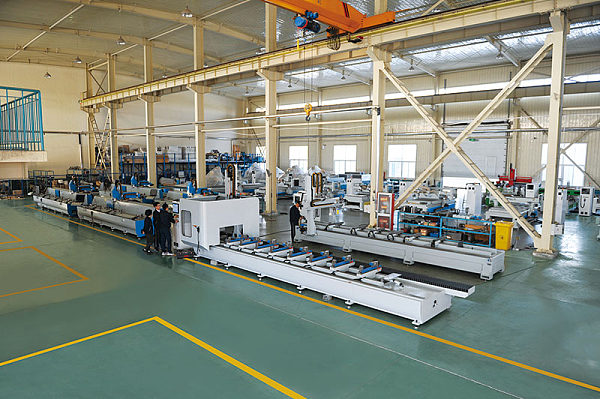

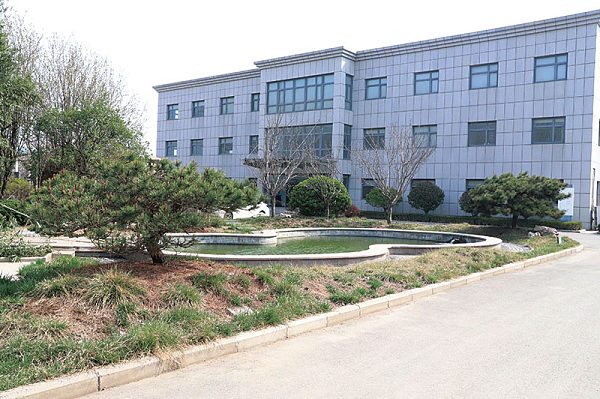

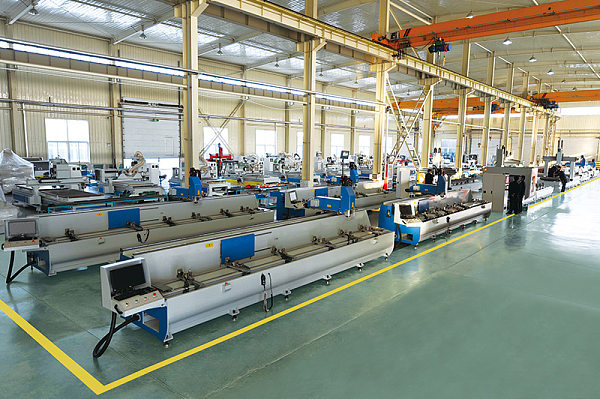

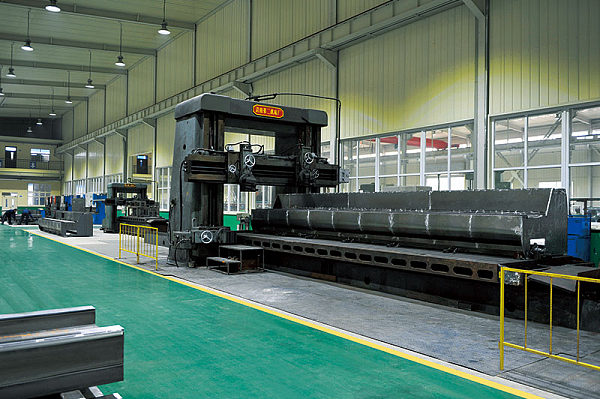

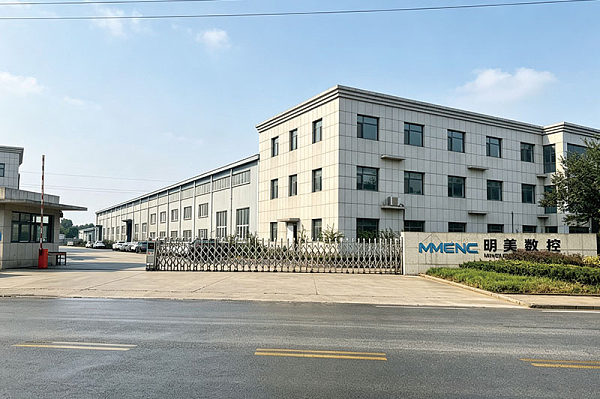

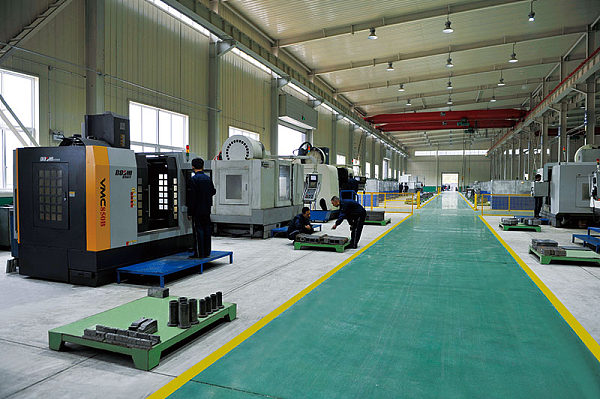

Factory Show

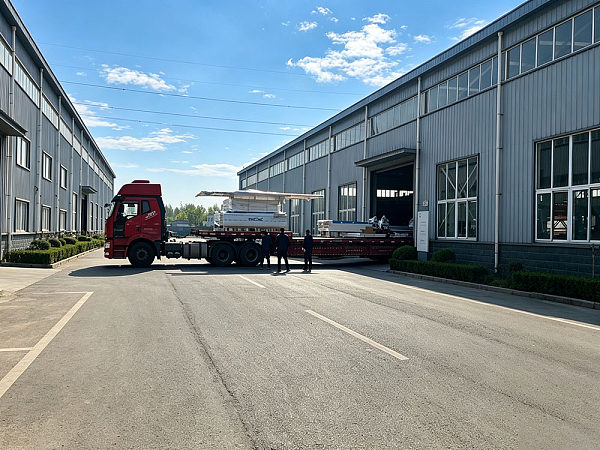

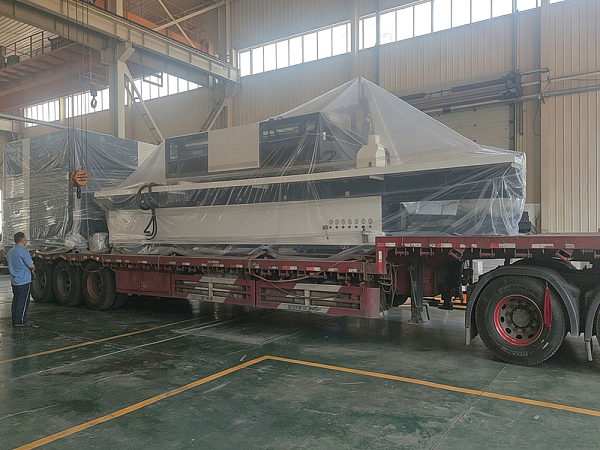

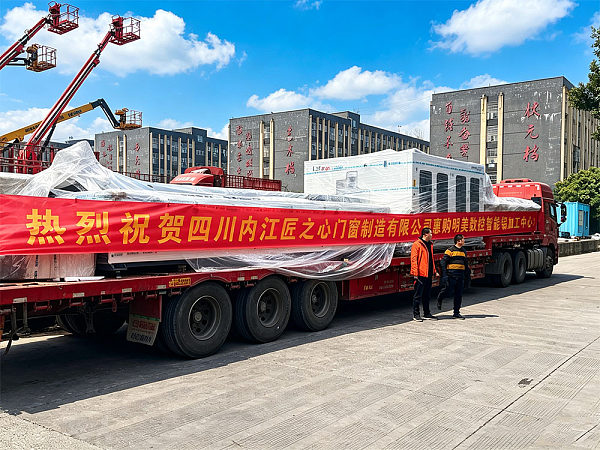

Shipment Site

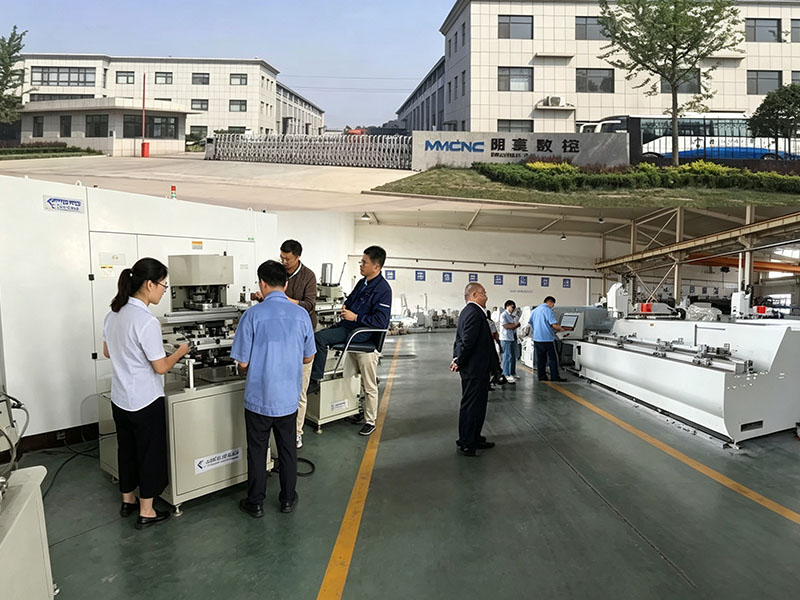

Customer Visit

FAQ



Q: How can I get a quote for my project?

A: You can contact me anytime, via WeChat, WhatsApp, Email, or phone. I will get back to you as soon as possible.

mmcnc@sdmmcnc.com

+86 13064011280

+86 13064011280



Q: How long can I get the price?

A: If possible, please provide project CAD drawings, pictures or specific requirements. We usually quote within 6 hours. If you want to get a quote as soon as possible, please let us know via WeChat, WhatsApp or email so that we can prioritize your inquiry.



Q: Can we visit your factory?

A: Of course, we welcome you to visit our factory or production line on site to understand our strength and quality. We will arrange a professional team to serve you. You just need to send your itinerary and leave the rest to us.



Q: Do you provide customized product services?

A: Of course, our professional R&D team can design and produce the products you need according to your specifications and drawings. For example: special size, special control, OEM, etc.



Q: Where is the loading port?

A: Normally, we ship from Tianjin Port, Qingdao Port and Shanghai Port. Of course, we can also accept the port you specify.



Q: How to package the product?

A: According to the characteristics of the product and the mode of transportation, fix it in the most appropriate and stable way to ensure that there will be no bumps, corrosion, scratches and other problems during transportation.



Q: What if I have no import experience?

A: We have extensive export experience. Tell us what you need and we will take care of the rest! We will help you choose the most appropriate shipping service to get your products to where they need to be safely and accurately.



Q: Can you provide on-site installation service?

A: We can provide installation guidance service according to customer requirements. Construction drawings, installation drawings and videos will be sent to customers to help on-site installation. If necessary, our engineers will go to the site to guide the installation.



Q: How long is the delivery time?

A: It depends on the order quantity. Generally, the delivery time is about 10-20 days.



Q: What is your payment terms?

A: Payment ≤1000USD, 100% in advance. Payment ≥1000USD, 40% T/T in advance, the balance to be paid before shipment.



Q: How can I place an order if my trial order does not reach your MOQ?

Q: How can I place an order if my trial order does not reach your MOQ?
A: If your trial order is a small order, we can also provide the goods, we can communicate anything.



Q: How do you control product quality?

A:
1. Design quality: Consider possible problems in advance and provide high-quality design solutions.
2. Raw material quality: Select qualified raw materials
3. Production quality: Precision manufacturing process, experienced workers, strict quality inspection.

Contact Us

Quality and After-sale Assurance



As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.



We promises that the name, model, specification and quantity of the equipment comply with the technical agreement. Guarantee that the equipment is excellent in craftsmanship, free from defects in design, materials, and workmanship, and meet customer needs.



We will provide service on installation and commissioning , no worry about after sales.



All equipment is delivered after passing the quality inspection and debugging.
